Safety Mat Switch for Shock & Drop Testing System

It is one of the easy and efficient measures to use Safety Mat Switch, in order to protect workers from the dangerous area of the Drop / Shock tester circumference.
When workers and things are on Safety Mat Switch, it enables control of suspending rise-and-fall equipment or repealing fall operation, and prevents an accident. Moreover, a worker's operation is not barred by using Safety Mat Switch.

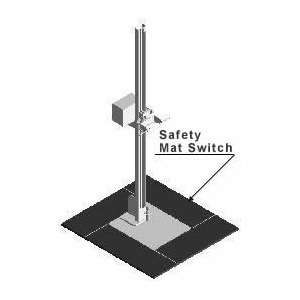

For Shock Testing System

For Shock Testing System

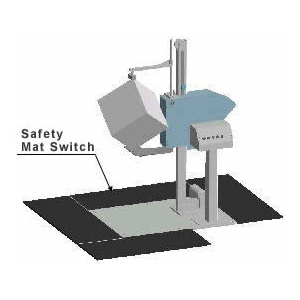

For Drop Testing System

For Drop Testing System

For Drop Testing System

For Drop Testing System

Feature

  • Easy to use because Safety Mat Switch just set on a floor.
  • There is no malfunction because it equipped the disconnection recognition function (in the case of a 4-wire system).
  • There is no malfunction by radio disturbance, a noise, etc.
  • Form and size can be selected according to a setting position.
  • one or more sheets is possible.
  • In the case where two or more Safety Mat Switchs are installed, it is easy to use because between mat switches is connected by a connector.

Specification

Model Safety Mat Switch
Voltage rating DC24V (*2)
The minimum detection load capacity approx. 10kg/20cm²
Load capacity approx. 150kg/20cm²
Material Oilproof rubber
Color Black
Wire connection Connected in series
Size (W × Hmm) 300 × 1000, 500 × 2000 and etc.
Other Combined use with other safeguards is also possible.
