Drop Tester EMH series

Release Hook for Drop Test

Drop Tester EMH series

Drop tester for heavy weight products

This model is a drop tester for heavy weight products and packaging. Massive cargo in packaged freight, unit load, palletized cargo, can conduct the drop test safely with the EMH. This well-designed electromagnetic hook can re-lease the cargo for a steady drop test.
Note: the cage for hanging the EMH should be prepared by customer.

Features

  • Specialized for massive samples
  • No limit in size for the EMH-500
  • High Reproducibility
  • Easy Maintenance for Long Term Usage
  • Easy-to-Use Test Settings
  • Safe operation by energized operation

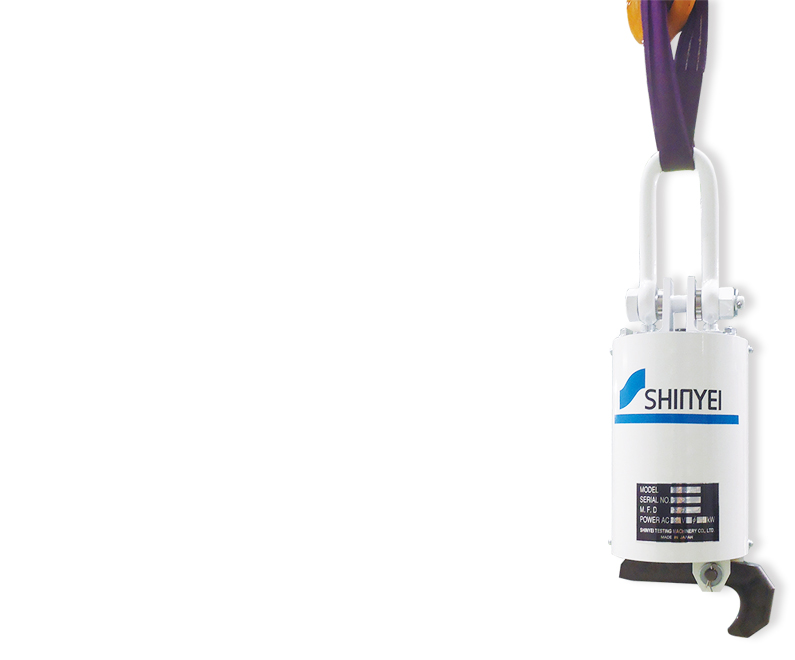

EMH-500

EMH-500

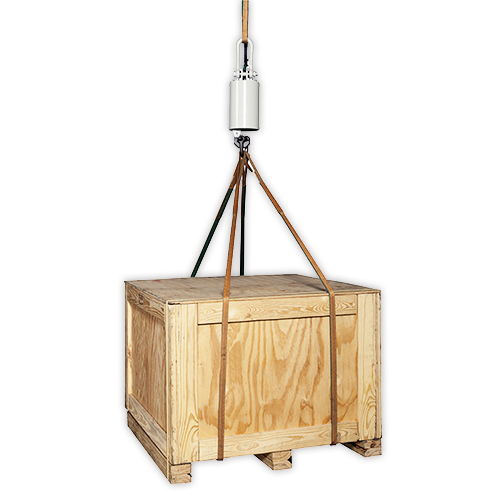

EMH-500 with specimen

EMH-500 with specimen

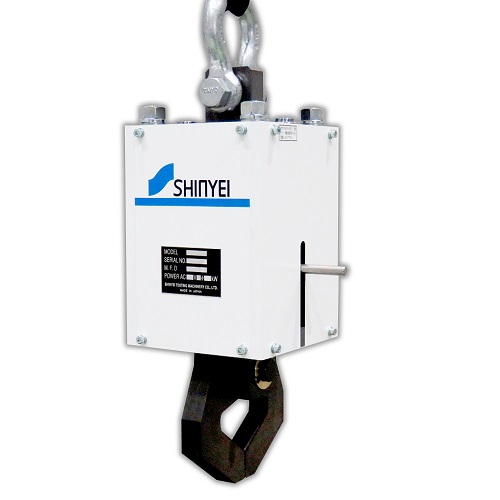

EMH-3000

EMH-3000

Applied Standard

  • ISO 4180
  • ISO 2248
  • ASTM D5276

Applications

Massive cargo in packaged freight, unit load, palletized cargo, and manufactured product can be submitted to drop test with safety.

Acceleration Measuring System SM-500

軽量落下試験機 DT-202 ハイスピードカメラを使用した解析システム

Shock pulse when dropped can be captured and quantified easily by combining EMH-500 with SM-500 (Optional device). Captured data is shown on your PC screen immediately when shock pulse generated.

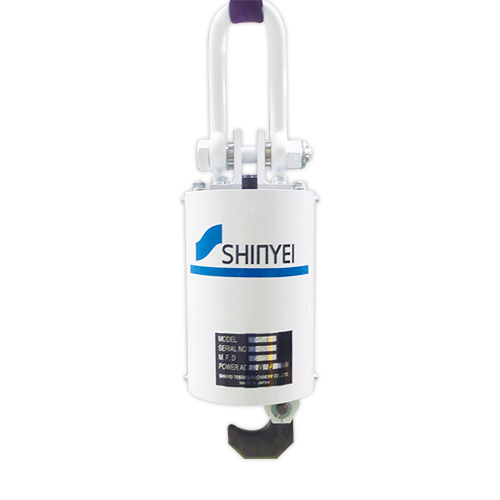

Drop Tester EMH-500

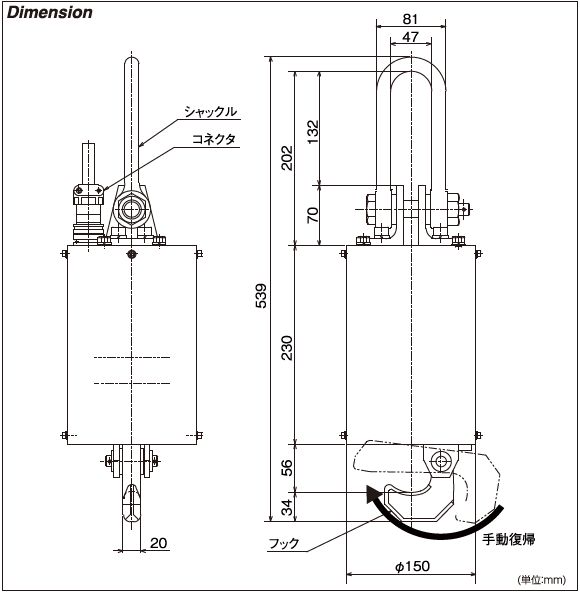

Release Hook for Drop Test EMH-500 Size

Specification

Model EMH-500 EMH-3000
Specimen range (kg)*1 1 ~ 500*2 50 ~ 3000
Capacity (kg) about 12 about 40
Cable length of switch box (m) 5
Cable length of power box (m) 7
Power cable length (m) 3
Power supply AC200V, single-phase, 1.5KVA AC200V, single-phase, 3KVA
*1 Please contact us when you need suitable hanging jig of dropped items for drop test.
*2 please contact us when mass of dropped items become 1 to 50kg.
