Shock & Vibration data logger AccStick

Acceleration Measurement
[Discontinued model, maintenance service only]

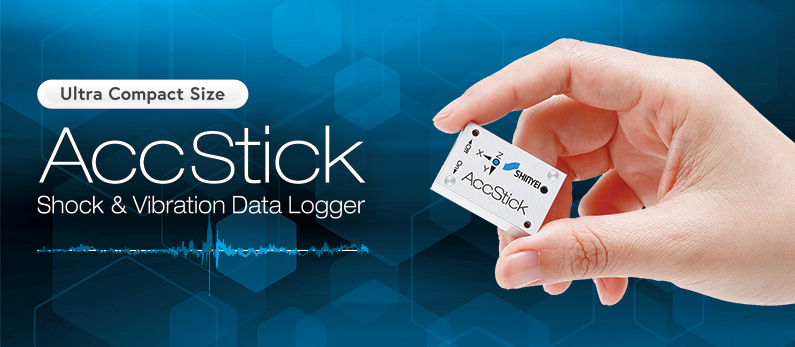

AccStick

Ultra Compact Size Shock & Vibration Data Logger

This extremely small device with built-in 3D accelerometer, flash- memory and rechargeable battery has been released. 3D acceleration waveforms are captured via high speed sam-pling, at 1600Hz max. Measured data can be described and converted to .csv file via PC software.

【 Download 】
Brochure
Startup guide
Instruction manual
PC software (zip file：2,628KB)

Features

Acceleration measuring with widely range
To measure the acceleration with accuracy, 2 type of accelerometers for vibration,±16G, and for shock,±400G, built into a single unit.
High speed sampling
Acceleration waveform can be captured by high speed sampling, up to 1600Hz.
Small package
The extremely small unit, 32.4×21.0×10.5 mm, will enable you to measure 3D acceleration in any location.
PC software
Via PC software, you can configure the measuring setting to AccStick, and download the data. Measured data is converted as .csv file into your PC automatically.
Accelerometer calibration(Optional service)
To measure 3D acceleration with high accuracy, we provide you optional calibration service. Test report & traceability chart will be attached with your device.

Application

  • Various automotive applications
  • Reliability testing for electrical products
  • Motion monitoring for robots and androids
  • Logistical distribution such as during loading and unloading, and distribution
  • Sporting goods development
  • Production equipment monitoring and maintenance

    • Specification

    Product Shock & Vibration data logger AccStick
    model A01-16400
    Accelerometer Vibration sensor ±16G with 3axis MEMS
    Shock sensor ±400G with 3axis MEMS
    Configuration range (G) Vibration sensor 2 / 4 / 6 / 8 / 16
    Shock sensor 100 / 200 / 400
    Accuracy ± 5% F.S.
    Sampring period (ms) 0.625 ~ 160（selectable, 0.625ms is for vibration sensor only. ± 5% accuracy.）
    Flame 100 ~ 500000（selectable）
    Trigger mode Imidiate / Timer / Acc. / Timer＆Acc.
    Memory 4MB Flashmemory (up to 500000 data)
    Power Lithium polymer rechargeable battery（full charge time : about 60 minutes)
    Duration Up to 72 hours（Acc. trigger mode at 20℃ with full charge）
    Depend on temperature, measuring or battery condition
    Size (mm)/ weight (g) W32.4 × D21.0 × H10.5 / 15
    Case material Aluminium (with two M2 screw fixing holes)
    Operational temperature (℃) 0 ~ +60 (No condensing)
    PC software Measuring configuration, data download, csv file output
    OS：Windows7/10 (32/64bit)
    Accessory Dedicated cable for AccStick, micro USB cable
