Shock Test Machine MDST Series
Multi Drop Shock Tester MDST Series
Shock Test Machine with Multi-shock pulse generator function

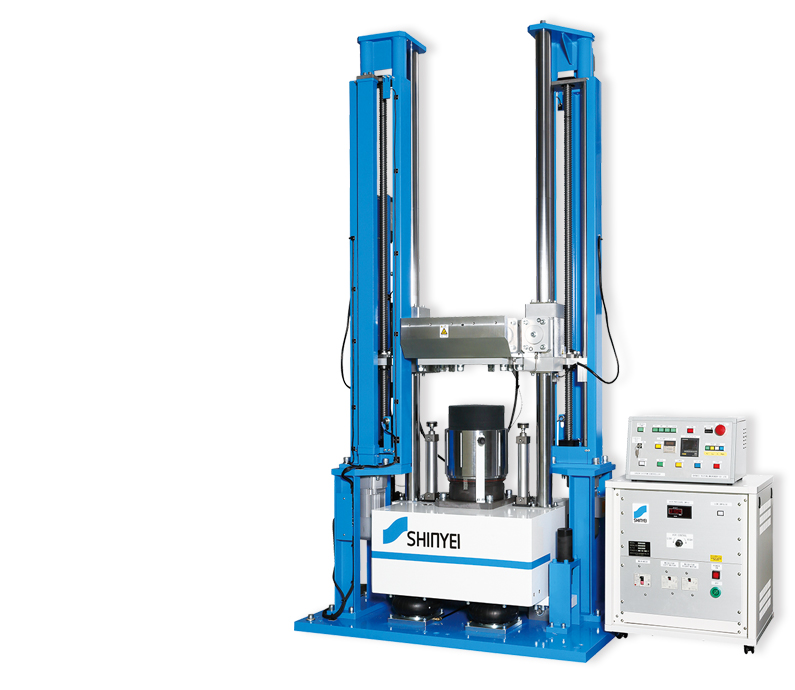

Multi-Drop Shock Testing System MDST-300, 500, 700, 900, 1100, 1500, 2000
MDST has a unique characteristic, called the “Multi-shock pulse generator” to apply multi shock test conditions via a single programmer. With that characteristic and a wide range of table sizes, this tester can be used for various specimens.
Features
- Multi test-conditions application
- High Reproducibility
- Easy Maintenance for Long Term Usage
- No-brainer Tester to operate
- Easy Setting with Simple Construction
- Set-up by Double-Layered Shock Absorber
Applied Standard
- MIL-STD-810F
- IEC 60068-2-27
- ASTM D5487( with optional programmer)
- JIS C 60068-2-27
- JIS Z0202
- JIS E 3015
Application
- Fragility test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts and etc.
- Shock standard test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts and etc.
Specification
| Model | MDST-300 | MDST-500 | MDST-700 | MDST-900 | MDST-1100 | MDST-1500 | MDST-2000 |
|---|---|---|---|---|---|---|---|
| Table size (W × D mm) | 300 × 300 | 500 × 500 | 700 × 700 | 920 × 920 | 1150 × 1150 | 1500 × 1500 | 2000 × 2000 |
| Specimen max weight (kg) | 50 | 80 | 100 | 200 | 350 | 500 | |
| Shock pulse | Half-sine | ||||||
| Acceleration range (m/s²) | 100 ~ 3000（10 ~ 300G） | 100 ~ 2700（10 ~ 270G） | 100 ~ 2000（10 ~ 200G） | ||||
| Pulse duration range (ms) | 4 ~ 25 | ||||||
| Size (W × D × H mm) | 1100×640×2400 | 1300 × 700 × 2500 | 1600 × 900 × 2950 | 1800 × 1150 × 3300 | 2200 × 1300 × 3100 | 2500 × 1650 × 4055 | 3000 × 2300 × 3690 |
| Capacity (kg) | 1000 | 2600 | 4200 | 5200 | 9000 | 19100 | 32000 |
| Controller size (W × D × H mm) |
520 × 500 × 950 | ||||||
| Power supply (Voltage) | AC200V, 3-phasese, 10A | AC200V, 3-phasese, 20A | AC200V, 3-phasese, 30A | AC200V, 3-phasese, 40A | |||
| Power supply (Current consumption) | 10A | 20A | 30A | 40A | |||
Option
| Programmer for Half-sine wave | Specialized programmer of shock duration time 3 ~ 5ms. |
|---|---|
| Programmer of drop test for packaging | Specialized programmer of shock duration time 2 ~ 3ms. |
| Packaged freight fixing Jig | Use this jig for fix the edge and corner of packaging when a equivalent drop test conducted. |
| Shock Manager SM-500 |
Input the required shock acceleration, calculation of test conditions, measure shock acceleration and do various analysis of multiple channels. |
| Amplifer for high shock acceleration | High acceleration about 5000 ~ 50000m/s² are generated when shock duration time is 0.2 / 0.5 / 1 / 2 by HGP series. |
| Function for low shock acceleration | Shock pulse with low velocity, 1.4m/s or below, is generated |
| Air compressor | when you need. |
| Safety equipments | Mat switch / Patlite / Photoelectric switch / Safety fence etc. |
| Acceleration pickup | when you need. |
