Field Data Recorder / Logger DER-PRO
Distribution Environment Recorder
Compact Transportation Environment Recorder Dedicated to Data Analysis

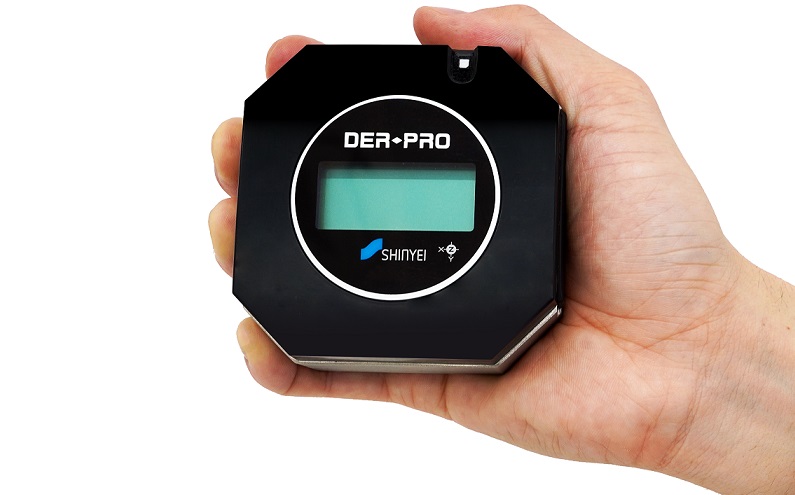

The Transportation Environment Recorder DER-PRO is a compact data logger that measures 3-axis acceleration and temperature/humidity during transportation. It is equipped with two sensors (±16G, ±200G) in a single unit, tailored to different measurement purposes, and records large amounts of data on an SD card. The measurement data can be analyzed using dedicated software, which offers various analysis functions such as PSD, histograms, transport diagnostics and so on. Data files recorded with the previous model, DER-1000, can also be handled by the DER-PRO dedicated software.
【Download】
Brosure
Analysis Software and Operational Manual
Features
- Vibration and Shock accelerometer built in one unit
- Large capacity data can be memorized to SD card
- Ultra compact size body
Application
- Distribution environment survey of package freight, and quality control.
- Development of standards for package freight drop test and vibration test.
- PSD(Power Spectral Density) analysis of transport unit.
- Development of packaging specification.
- Finding problem on distribution environment.
- Distribution traceability survey.
Specification
| Model | DER-PRO |
|---|---|
| Memory | SD card(16GB)*1 |
| Continuous record time*2 | Maximum 7 days by lithium battery Maximum 3.5 days by Alkaline battery |
| Trigger mode | Accelaration / Timer (selectable via analysis software) |
| Frame length | 1024 |
| Sampling rate | 1 ms |
| Frequancy range | DC to 250Hz |
| Acceleration measurement | ±16G / ±200G (selectable via software) |
| Temperature & humidity | Temperature : -20 to 60℃, Humidity : 5 to 95% rh |
| Battery | AA batteries × 2 |
| Interface | USB typeC |
| Display | LCD |
| Size (mm) | W79 × D79 × H36 |
| Weight (g) | 380 (with battery) |
| Case material | Stainless steel（SCS13）+ resin（ABS) |
| OS for analysis software | Windows 10, 11 |
| Operating temp. (℃) | -20 ~ 60 (No condensing) |
| Package | DER-PRO, USB cable, AA battery, SD card(16GB) |
| Options | SD card(additional), calibration service |
*1 Use the designated SD card (RP-SDGD / Panasonic).
*2 when using new batteries at an ambient temperature of 25℃ atmosphere operation (depends on measuring condition.)
Analysis Software

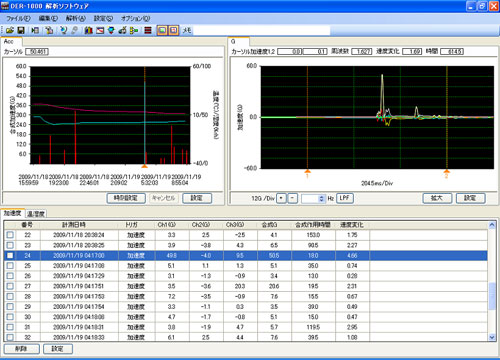

You can analyze your distribution data via analysis software that is able to calculate PSD and histogram and other metrics.
