Safety Fence for Shock & Drop Testing System

Safety Fence is a safeguard which encloses the circumference of Drop / Shock tester and protects workers from dangerous area. When the door of Safety Fence is open, inasmuch as the safety switch is equipped with its door, it enables control of repealing setup and fall operation is enabled and an accident is prevented.

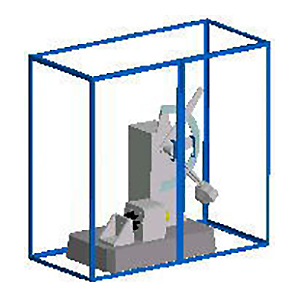

For Shock Testing System

For Shock Testing System

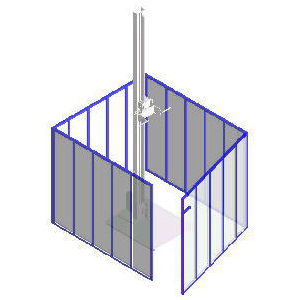

For Drop Testing System

For Drop Testing System

For Drop Testing System

For Drop Testing System

Feature

  • Welding structure using an angle pipe (round pipe)
  • Possible to manufacture the safe fence of form or a size according to a setting position.
  • front surface and back surface can also be manufactured by the setting position of test equipment.
  • The door switch is equipped.
  • About the details of form and size will be manufactured by mutual agreement.
  • In order to prevent a sample dispersing, vinyl chloride (transparent) can be stuck inside a safe fence.
  • The opening-and-closing door can manufacture single swing door(right swing or left swing) or double swing door.

Specification

Model Safety Fence
Voltage rating DC24V ( Door switch )
Size (W × D × Hmm) 2000 × 2000 × 800, 3000 × 3000 × 1000, and etc.
Other Combined use with other safeguards is also possible.
